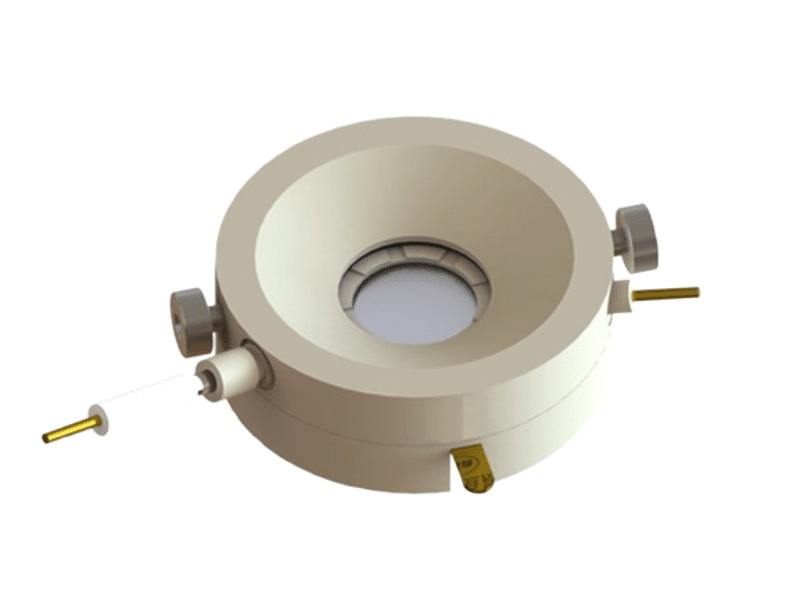

In-situ Raman Electrochemical Cell
Cell PEEK + Window Quartz sheet, In-situ Raman Electrochemical Cell
Description & Specification
| In-situ Raman Electrochemical Cell | |
| Model | SEC071 |
| Material | Cell PEEK + Window Quartz sheet
Sealing parts: fluororubber |
| Specification | External size: Ø70*24mm. Volume 6mL
Window path: Ø27mm, Quartz sheet thickness 1mm. Suitable installation size: 25mm*25mm*(0 to 2.2mm thickness),effective reaction area Ø22mm. The distance between working surface and Window bottom: 3mm |
| Feature | A cell includes:
Platinum Wire counter electrode*1 Ag/AgCl electrode*1 It suits Plate working electrode such as ITO, FTO glass or metal plate.etc. |
