Description

Scientific methods can deliver a lot of information about your molecule, solution, or reaction, however, a single method will only provide a limited amount of information based on a single interaction, for example, light absorption, oxidation at an electrode, change of mobility, or movement of mass in an electric field. For this reason, scientists try to create hyphenated techniques that allow observing the same system at the same time with multiple techniques. A popular hyphenated technique is spectroelectrochemistry, where electrochemical reactions or products are characterized by electrochemical methods, e.g., cyclic voltammetry (CV), and spectroscopy, e.g. UV-VIS. The information both techniques deliver is complementary as well. For example, an unstable product of electrochemical oxidation can be detected by spectroscopy before it decays. This kit allows you to get started with spectroelectrochemistry in a convenient way. The spectroelectrochemistry application note will show you exactly how to connect the spectrometer to the potentiostat and operate the software to get your first results.

Spectroelectrochemistry

Gain more insight into electrochemistry with a spectrometer

  • Measure current, potential and spectrum simultaneously
  • Tested Spectroelectrochemistry setup
  • Synchronized measurements
  • Combine results in PSTrace
  • Available as a complete kit with spectrometer accessories, or starter kit if you already have a spectrometer

    Contents

    The Starter kit includes:

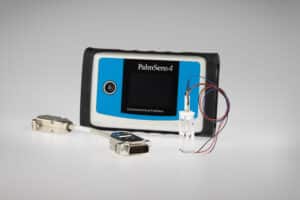

    Spectroelectrochemistry Starter Kit
    • A potentiostat of your preference: Nexus, PalmSens4 or EmStat4X (select ‘none’ if you wish to use an existing potentiostat);
    • Photoelectrochemical Cell ItalSens K300 with wires soldered to the electrodes;

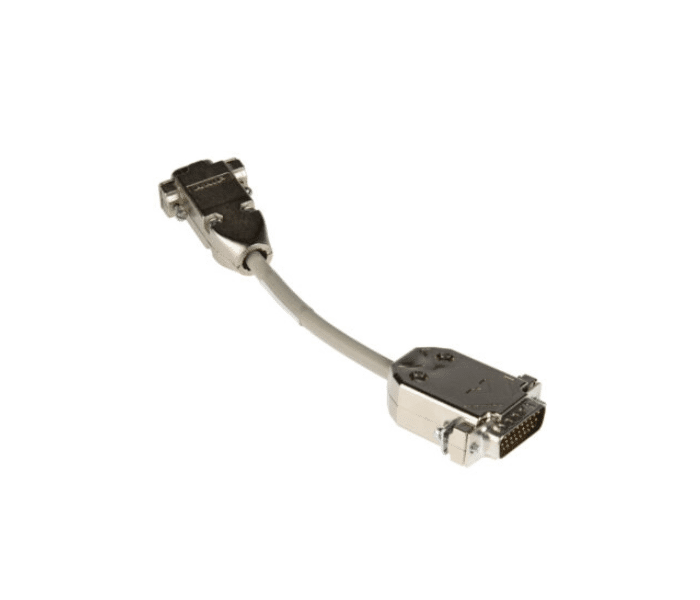

    • Special cable to connect the Auxiliary port of a potentiostat to the Avantes spectrometer;
    • Easy-to-use PSTrace software.

    In addition to the starter kit, we have partnered with Avantes to offer you:

    • Spectrometer: the AvaSpec-ULS 2k (ULS2048CL-EVO), or the AvaSpec-Varius 2k (VRS2048CL-EVO) with improved optical bench design.
    • Light source AvaLight-DHc
    • Fibers 2x FC-UVIR600-1
    • Cuvette holder CUV-UV/VIS
    • AvaSoft software

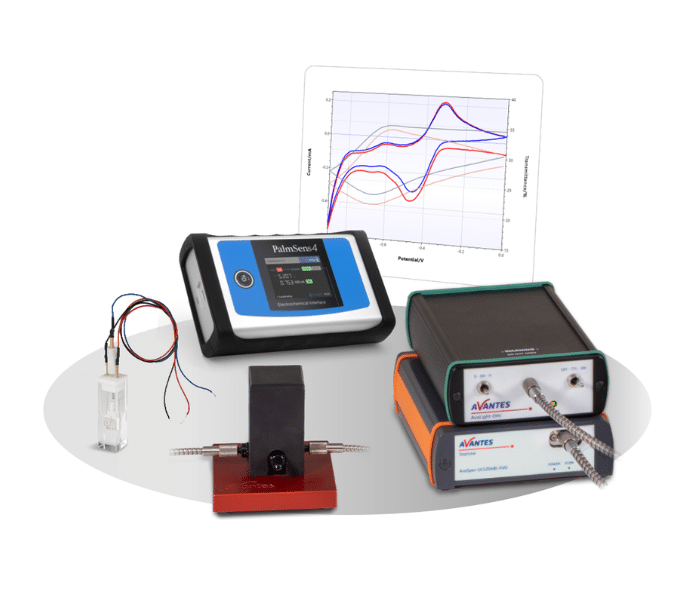

    Together, this complete spectroelectrochemistry setup will look like this (laptop, pipettes and vials not included):

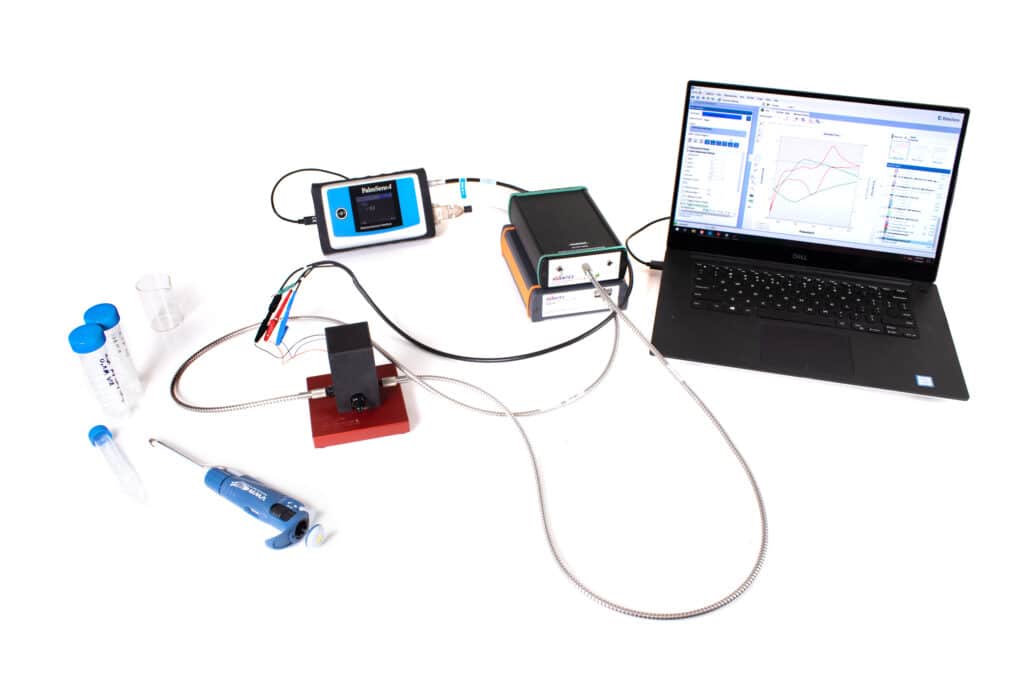

    Complete Spectroelectrochemistry Setup

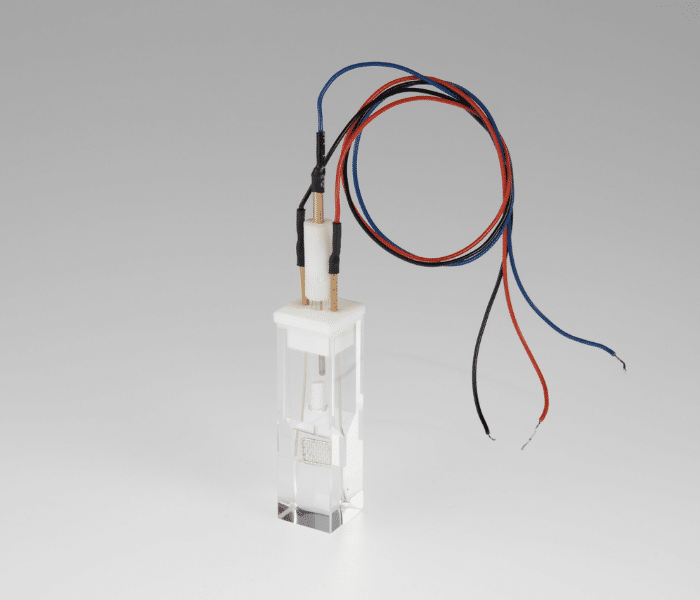

    Photoelectrochemical cell

    • Cell Specifications: 8 mm × 6.5 mm × 1 mm
    • Features: shaped like a cuvette, surrounded by light. Made of full quartz melt with PTFE lid.
    • Application: Suitable for electrochemical testing in the process of in situ UV – visible spectroscopy, fluorescence spectroscopy and other spectral signal response.

    Matching electrode: a Platinum mesh electrode as the working electrode, a platinum wire electrode as counter electrode,
    a silver/silver chloride in KCl 3M electrode as the reference electrode.

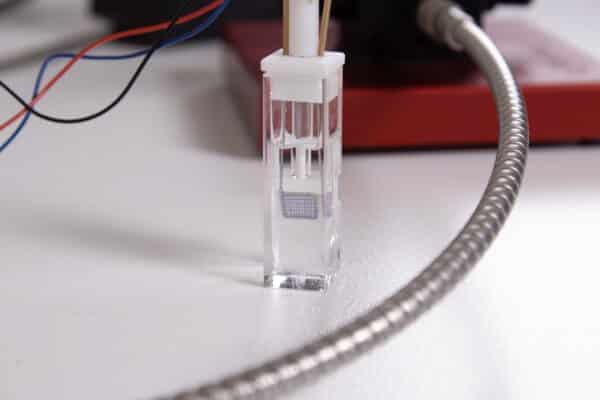

    Electrochemical Cell Image

    Downloads

    With its versatile and flexible design, the VARIUS™ allows for analyzing a wide range of samples and measurements, allowing you to gain insights into your research or application quickly.

    Type: Datasheet
    Last updated: 01-04-25


    Download PDF

    Get more insight into electrochemistry by adding a spectrometer to your potentiostat. This application note describes how to perform spectroelectrochemistry with a PalmSens4 and an Avantes potentiostat.

    Type: Application Note
    Last updated: 24-03-25


    Download PDF

    PSMethod file for use in PSTrace, with example parameters as used in the Spectroelectrochemistry application note.

    Type: Other
    Last updated: 24-03-25

    PalmSens4 Brochure

    Type: Documentation
    Last updated: 10-03-25


    Download PDF

    Using CMOS instead of the conventional CCD technology, this spectrometer is entirely up to date and ready for the next decade. Read more in this datasheet.

    Type: Datasheet
    Last updated: 20-08-24



    Download PDF

    Spectroelectrochemistry

    Get more insight into electrochemistry by adding a spectrometer to your potentiostat. This application note describes how to perform spectroelectrochemistry with a PalmSens4 and an Avantes potentiostat.
